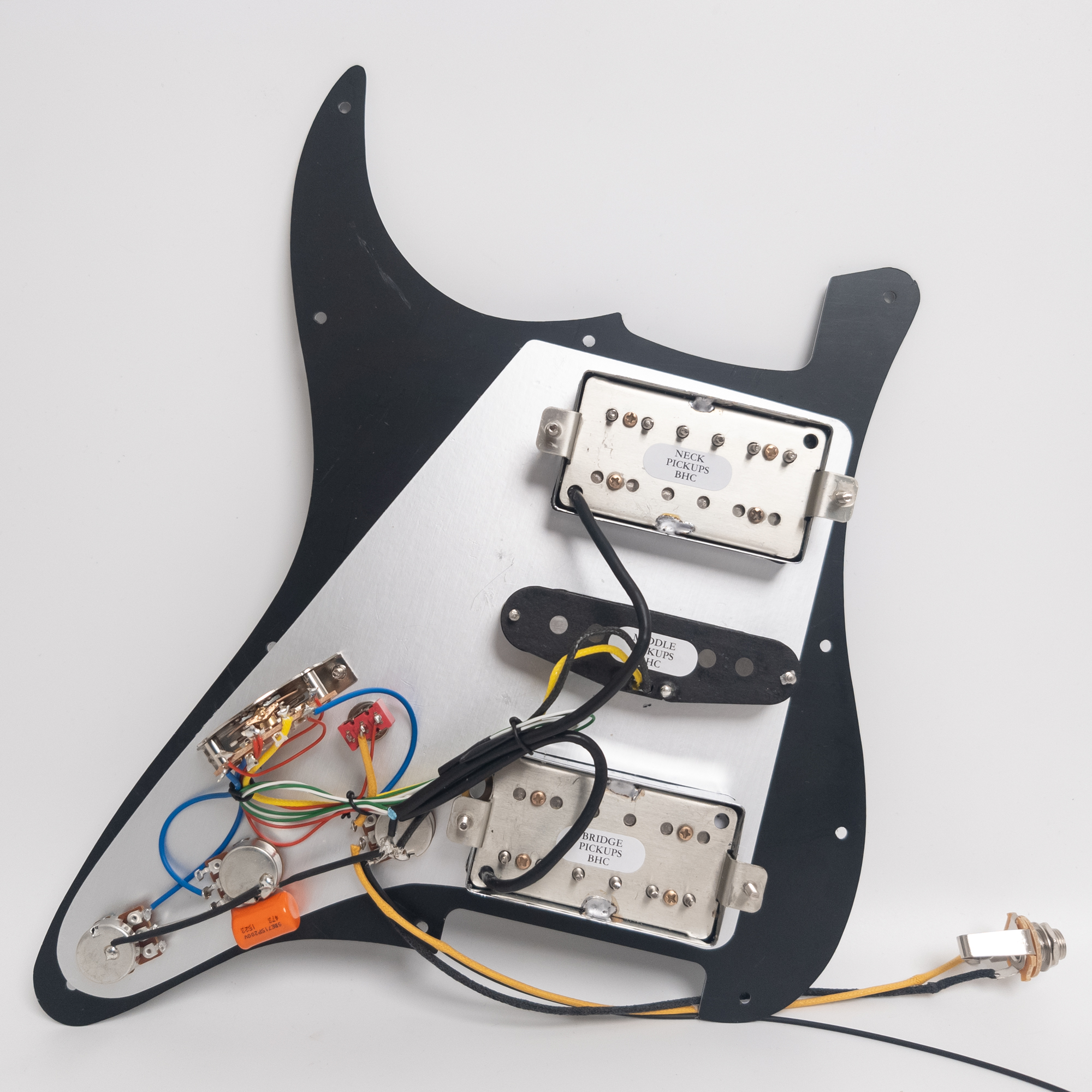

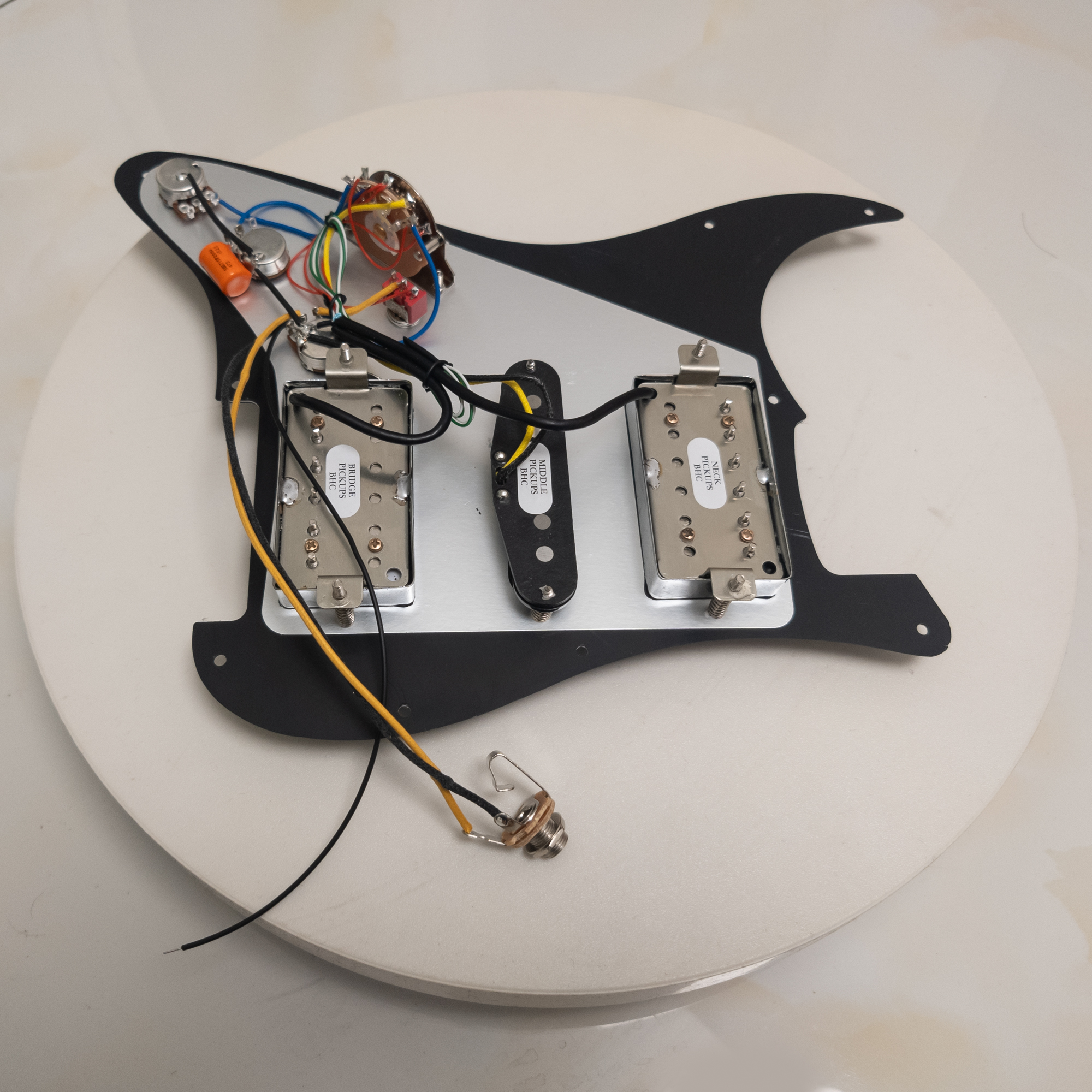

For Fender Strat Guitar Prewired Loaded Pickguard, with HSH Alnico 5 Humbucker Pickups

The surface of the product is covered with a film to prevent scratches and damage. Please remove the film before installing the product on the guitar. Specifications: Product Introduction: Item Model :Upgrade Loaded HSH Guitar Pickguard Set Material:Alnico 5 Pickups , imported c opper wire Pickups DC Resistance (approx.): Neck Pickups :Alnico 5 humbucker pickups 6-7 K ; hole distance 50mm Middle Pickups : Alnico 5 single coil pickups 6-7 K; hole distance 52mm Bridge Pickups :Alnico 5 humbucker pickups 10-15 K ; hole distance 52mm (K resistance is for reference only, which will change as the temperature changes) 3× (2 pcs CTS 500K Potentiometer and 1pcs Pot Split Shaft Button Switch Potentiometer )1V 2T 1× single cut switch; 1× Orange Caps 1× Output Jack 11 x Screws Scope of use :Suitable for most ST guitars Difficulty Of Use:simple, solder the reserved wire to the guitar spring claw Weight :700g / set Important Tips In addition to the original function,the four single-cut toggle and one enhanced switch bring new functions, as follows: 1.When the 5-speed switch is placed in the first position, the neck pickups work. After pressing the enhanced switch at this time, neck + bridge pickups will work at the same time. 2.When the 5- speed switch is in the second position, the neck + middle pickups work together, pressing the enhanced function switch at this time, neck + middle + bridge pickups will work at the same time.

• The complete pre-wired pickguard assembly integrates volume and tone knobs with a 5-position switch. Simply remove the old pickguard, connect the ground wire, and instantly upgrade your tone without any soldering.
• The bridge/neck features high-power Alnico 5 dual-coil pickups with a reverse-wound single-coil in the middle, covering styles from blues to metal.
• The three-layer pickguard uses the standard 11-hole pattern to fit most US/Mexican-made Stratocasters; shielded copper foil and noise-reduction circuitry effectively suppress hum.
